SCHÜCO AD UP 75
AD UP 75
Aluminum Door Universal Platform System
AD UP 75 is a high-performance hinged door system designed for broad commercial and residential applications with excellent insulation and robustness.

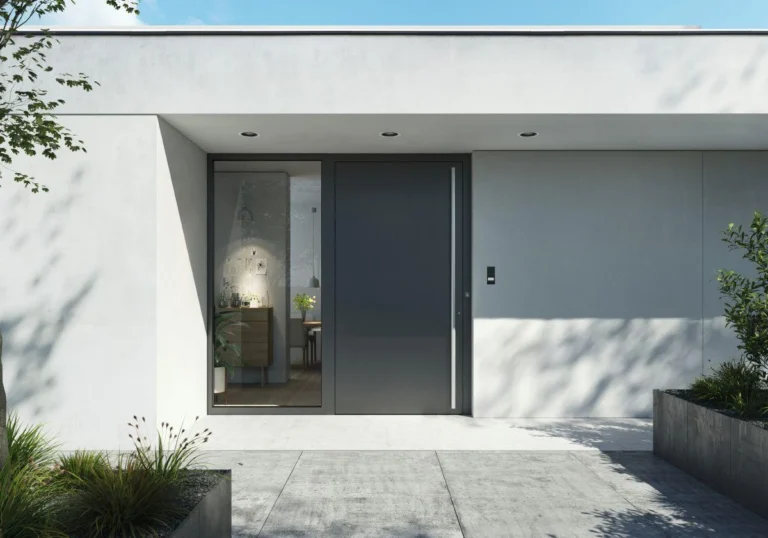

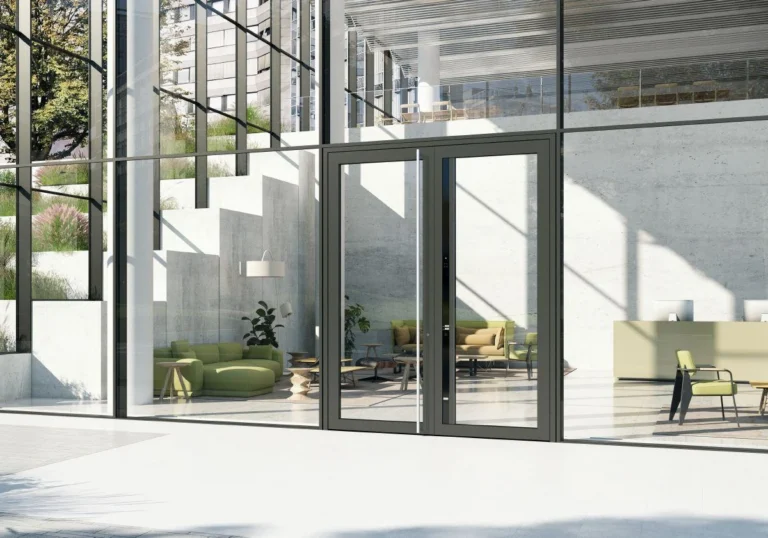

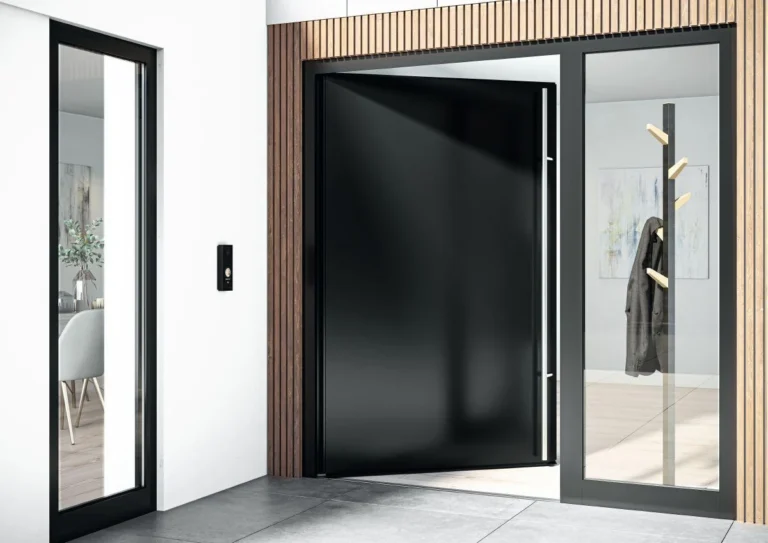

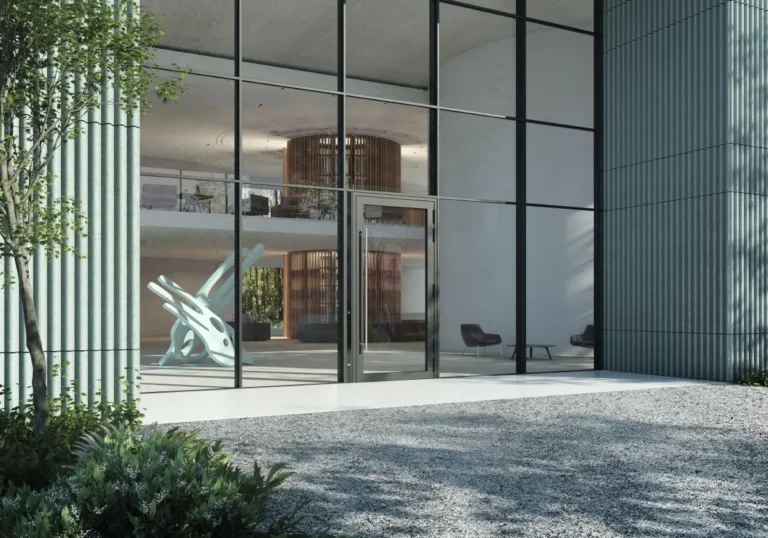

AD UP 75 Gallery
- Uf value of frame (≥)
Max. height
3000 mm
Max. width
1400 mm
Max. glass/panel thickness
53 mm
Max. vent weight
200 kg
Area of application
Residential & Commercial projects
Surface finishes
RAL, Anodised
Air permeability
Class 4
Watertightness
E 750
Wind load resistance
Class C3 / B3
Burglar resistance
Up to RC3
Impact resistance
Class 1
- Min.-max. height
- Min.-max. width
- Min. face width
- Proof of durability
- Behaviour between different climates
- Max. sound reduction index Rwp
- Min.-max. glass/panel thickness
- Barrier-free (≤) 20 mm
Yes

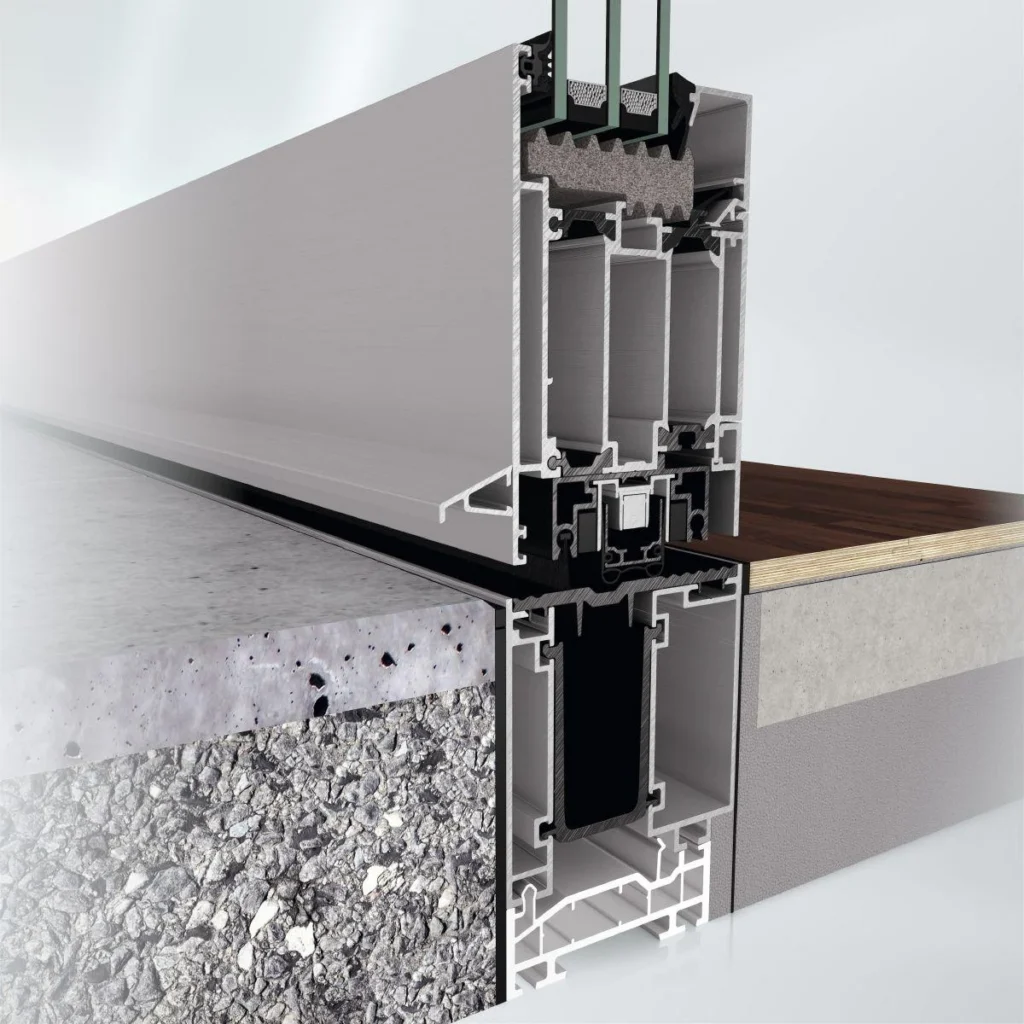

Zero-level threshold
Yes
- Thick door leaf
- Type of design
Single-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left, For use in façade
- Vent option
All around, Sill rail profile, Adjustable sill, Flush-fitted, Inward opening, Outward-opening, Insert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
- Infill type
Insert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
- Top / bottom door closers
- Door closer type
- Certificates
- CE marking
Door threshold
Aluminium, Automatic door gasket, Flat door threshold, Easy-access door threshold
- Special applications
Anti-finger-trap door, Sheet metal clad door, Opposed opening door, Swing door, Flush-fitted
- Fitting material
Aluminium, Stainless steel
Fittings installation
Surface-mounted door hinge, Concealed door hinge, Barrel hinge
- Concealed fittings system
- Neutral-colour fitting
Yes
- Fittings installation
Surface-mounted door hinge, Concealed door hinge, Barrel hinge
- Electric strikes
Yes
- With panic function
Yes
- Finger-trap protection
Yes
- Opening type
Side-hung, Inward and outward, Single and double-vent
- DIN direction
DIN LH / RH
- Door swing
Flush-fitted
- Mechanical strength
Class 3
