SCHÜCO AWS 75 BS.SI+

AWS 75 BS.SI+

Aluminum Window Block System Super Insulation

Our Block System combines optimized thermal insulation with the sleek design of aluminum windows, offering a slimline look without visible vent contours. This system meets the highest architectural standards by delivering exceptional transparency and energy efficiency while maintaining a uniform, modern appearance.

One of its standout features is the concealed vent design, making it impossible to distinguish from the outside whether a window is fixed or operable. Unlike many alternatives, which rely on outdated technologies resulting in clunky frames or uneven frame thicknesses across façades, our advanced block system ensures seamless, elegant integration. Its flexibility allows for sophisticated solutions, including punched openings, ribbon windows, or floating window designs, making it ideal for a wide range of architectural applications.

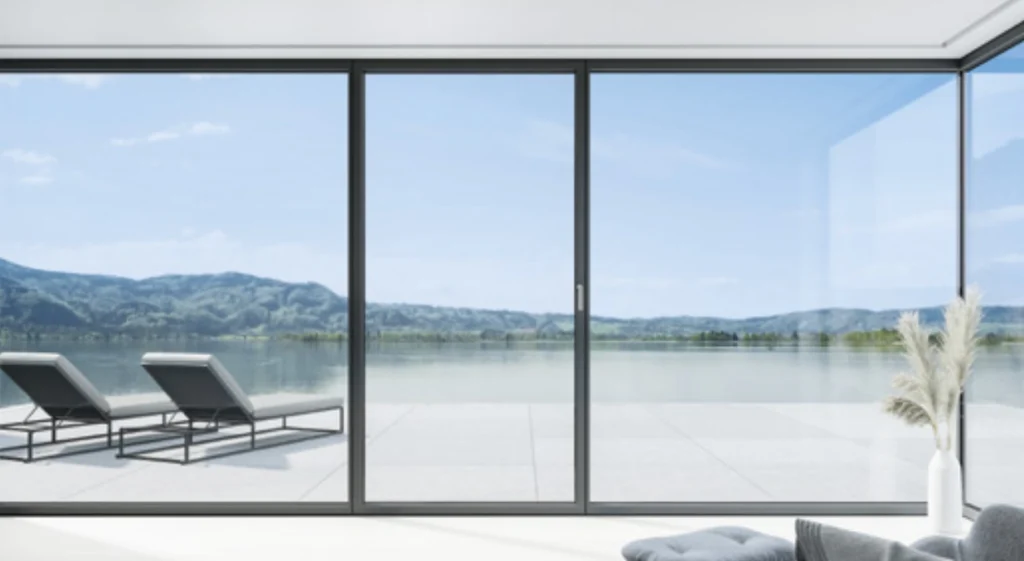

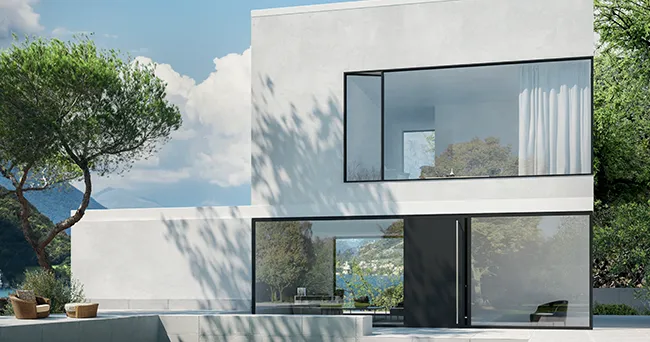

AWS 75 BS.SI+ Gallery

Min. face width

67 mm

Uf value of frame (≥)

1.4 W/(m²·K)
Max. glass/panel thickness
54 mm
Max. vent width
1500 mm
Max. vent height
2200 mm
Max. sound reduction index Rwp
49 dB(A)
Air permeability
Class 4
Watertightness
Class 9A
Burglar resistance
Up to RC 2
Wind load resistance
Class C5 / B5
Corrosion protection class for fittings
Class 5
Ug value of glass (≤)
0.5 W/(m²·K)
Schüco sun shading possible
Yes
Security glazing
Yes
Suitable for safety barrier loading
Yes
Electronic monitoring
Yes
CE marking

Yes

Total basic depth
85 mm
Width of vent frame
85 mm
Max. vent weight
160 kg
Min.-max. vent height
540…2200 mm
Min.-max. vent width
470…1500 mm
Outer frame face width
67 mm
Vent frame face width
0 mm
Max. face width of mullion
181 mm
Min.-max. face width of mullion
92…181 mm
Barrier-free operating forces in accordance with DIN 18040
Yes
TipTronic
Yes
Opening type: TipTronic, inward-opening
Turn/tilt, Side-hung, Bottom-hung, Toplight
Certificates
cradle2cradle SILVER
Colour-independent
Yes
Max. face width of meeting stile
83 mm
Min.-max. face width of meeting stile
83…83 mm
Min.-max. glass/panel thickness
16…54 mm
Area of application

External use, Residential projects, Commercial projects

Shear bond

Yes

Concealed fittings system

Yes

Surface finishes

Powder, Anodised, Paint

Glass composition
Triple glazing
Operating forces
Class 1
Opening type: manual, inward-opening
Turn/tilt, Side-hung, Bottom-hung, Double-vent turn/tilt / side-hung, Double-vent side-hung / side-hung, Toplight, Tilt-before-turn
Opening angle
180 °
Mechanical strength
Class 4
Proof of durability
Class 3

Aluminum Sustainability

The Schüco AWS 75 BS.SI+ block window system adheres to the Cradle to Cradle (C2C) principle, emphasizing sustainability in terms of using materials that are non-toxic, recyclable, and support a circular lifecycle.
