Schüco Living Series

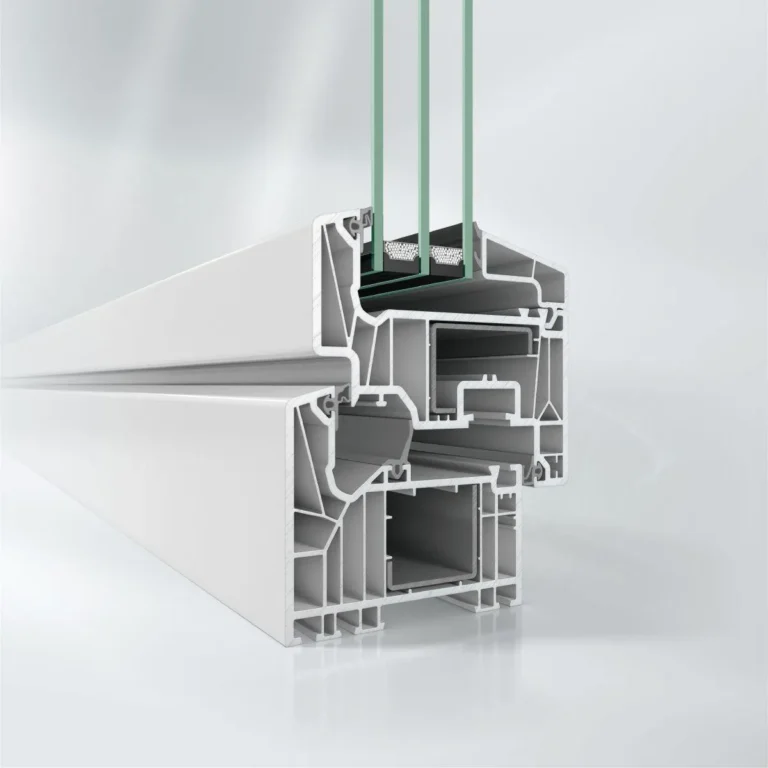

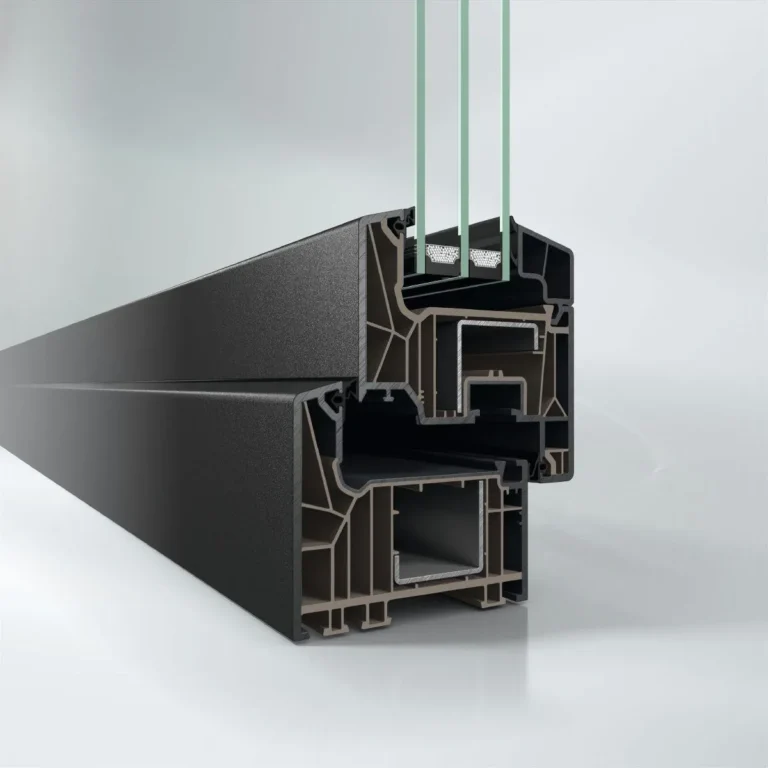

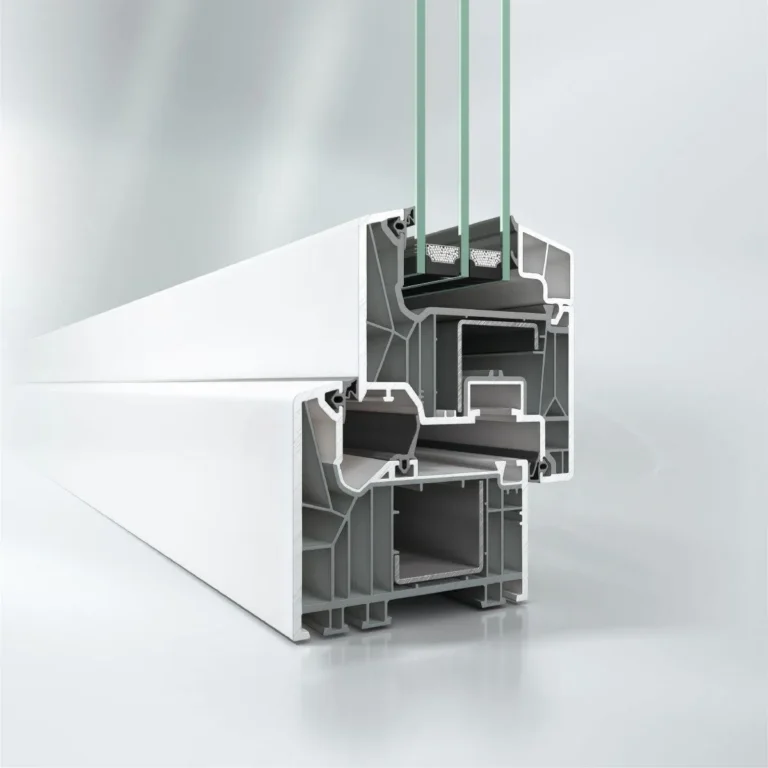

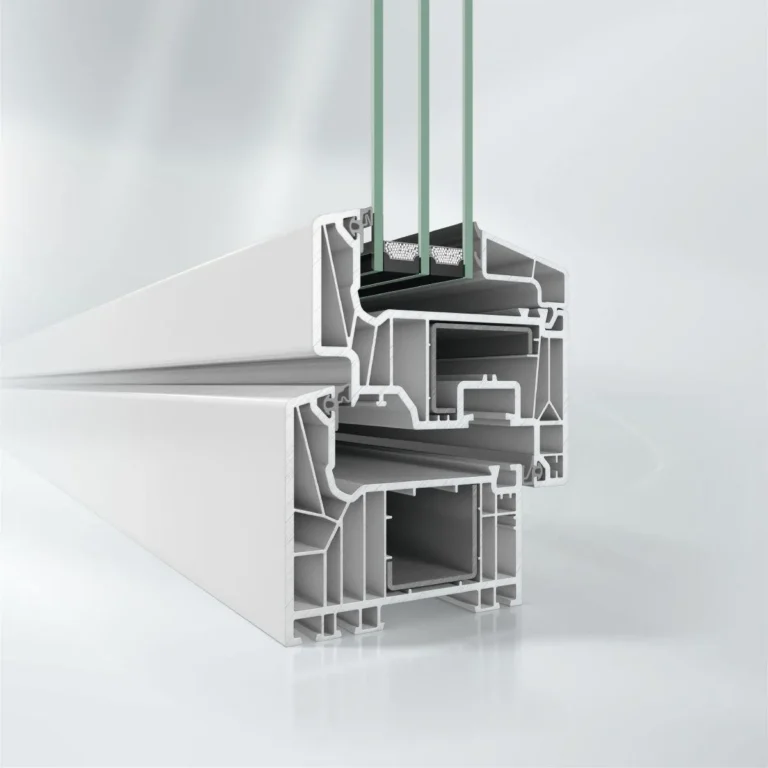

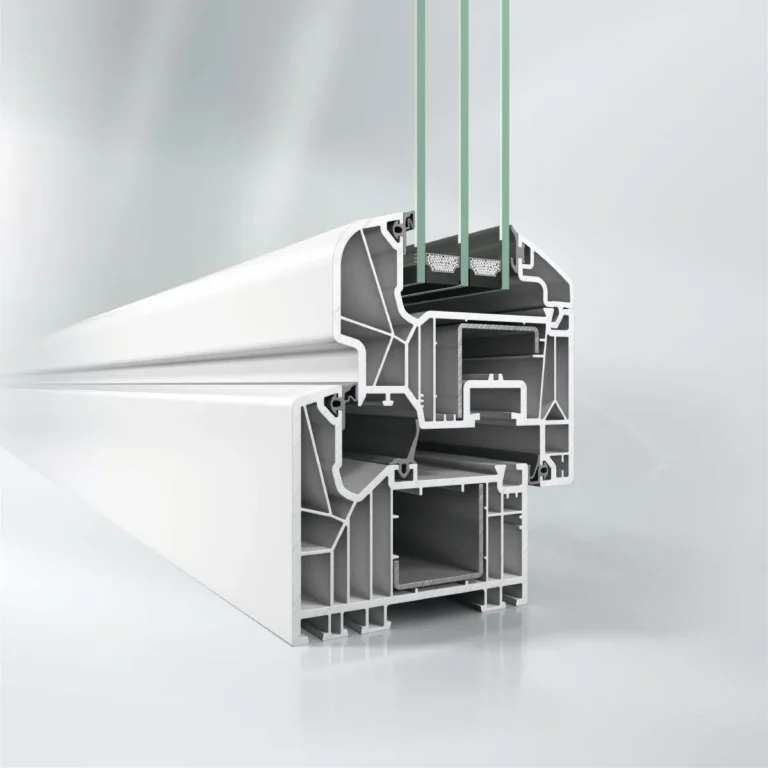

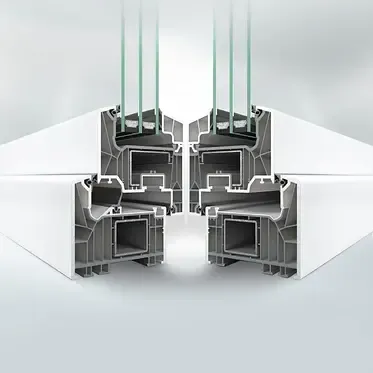

Schüco’s LivIng 82 is a high-performance PVC-U window system featuring a 7-chamber profile with a construction depth of 82 mm that enables excellent thermal insulation. Thanks to its “twin system” design, it supports both a rebate gasket and a centre gasket layout — with the centre gasket version even achieving passive-house thermal performance without extra modifications. Schüco It also includes a weldable EPDM gasket for superior sealing (especially at corners), a wide range of design options (Classic, Rondo, Viva), and flexible colour finishes via Schüco’s UnlimitedFinish and TopAlu lines.

uPVC Gallery

Min. face width

120 mm

Uf value of frame (≥)

0.96 W/(m²·K)
Max. glass/panel thickness
52 mm
Max. vent width
1500 mm
Max. vent height
2600 mm
Max. sound reduction index Rwp
47 dB(A)
Air permeability
Class 4
Watertightness
Class 9A
Burglar resistance
Up to RC 2
Wind load resistance
Class C5 / B5
Corrosion protection class for fittings
Class 5
Max. vent weight
120 kg
Min.-max. vent height
400…2600 mm
Min.-max. glass/panel thickness
24…52 mm
Min.-max. vent width
400…1500 mm
Zero-level threshold

Yes

Surface finishes
TopAlu, Decorative foils
Barrier-free (≤) 20 mm
Yes
